Wire Braided Steam Hose Resists To Heat With Copper Reinforcement

Wire Braided Steam Hose: Q/HYT03 STANDARD

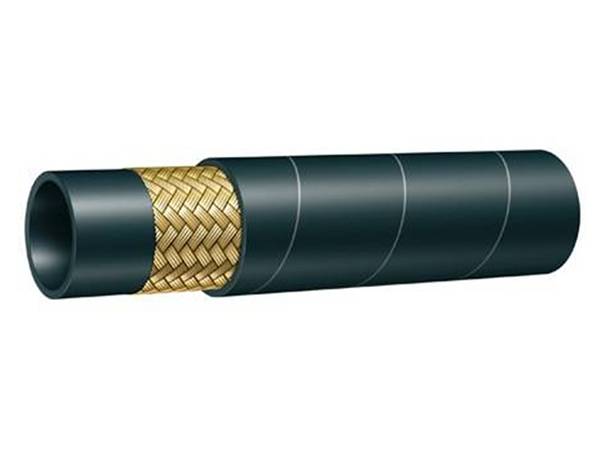

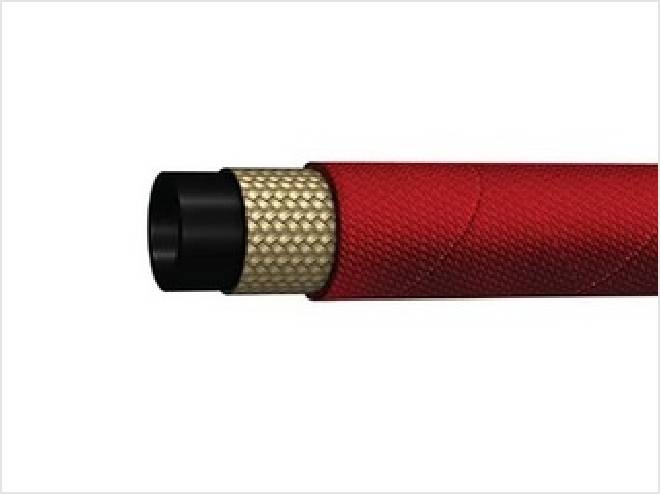

Construction : Made of excellent heat-resistant rubber and the reinforcement is braided with copper facing wire.
Applications : For conveying saturated steam and superheated water at a temperature below 150 °C continually or at a temperature below 160 °C intermittently.

W/B	Hose I.D		Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Length
W/B	DN	inch	mm	MPa	psi	MPa	psi	mm	metres
1W	10	3/8	21.5	1.0	150	4.0	570	130	20/ 50
	13	1/2	24.5	1.0	150	4.0	570	180	20/ 50
	16	5/8	27.5	1.0	150	4.0	570	205	20/ 50
	19	3/4	30.5	1.0	150	4.0	570	240	20/ 50
	22	7/8	33.5	1.0	150	4.0	570	280	20/ 50
	25	1	37.0	1.0	150	4.0	570	300	20/ 50
	32	1 1/4	44.0	1.0	150	4.0	570	420	20/ 40
	38	1 1/2	50.5	1.0	150	4.0	570	500	20/ 40
	45	1 3/4	57.5	1.0	150	4.0	570	500	20/ 40
	51	2	63.5	1.0	150	4.0	570	630	20/ 40
	64	2 1/2	77.5	1.0	150	4.0	570	700	20/ 40
2W	10	3/8	23.0	2.0	300	6.0	860	130	20/ 50
	13	1/2	26.0	2.0	300	6.0	860	180	20/ 50
	16	5/8	29.0	2.0	300	6.0	860	205	20/ 50
	19	3/4	32.0	2.0	300	6.0	860	240	20/ 50
	22	7/8	35.0	2.0	300	6.0	860	280	20/ 50
	25	1	38.5	2.0	300	6.0	860	300	20/ 50
	32	1 1/4	45.5	2.0	300	6.0	860	420	20/ 40
	38	1 1/2	52.0	2.0	300	6.0	860	500	20/ 40
	45	1 3/4	59.0	2.0	300	6.0	860	500	20/ 40
	51	2	65.0	2.0	300	6.0	860	630	20/ 40
	64	2 1/2	79.0	2.0	300	6.0	860	700	20/ 40
