EPDM Steam Hoses for Thermal Control and High-Temperature Steam Transfer
Our steam hoses are widely used in firefighting steam delivery, thermal control systems, industrial heating processes, and other environments requiring stable and safe steam transfer.
The product line is divided into low-pressure textile-reinforced steam hoses and high-pressure wire-reinforced steam hoses, each designed to meet specific operating conditions.

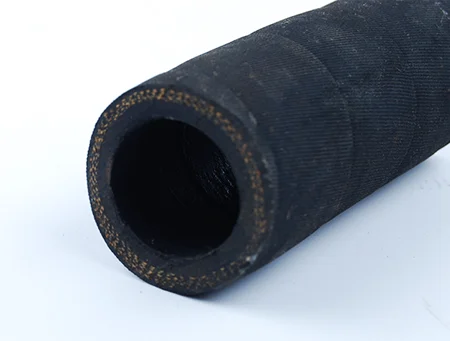

Black Low-Pressure Steam Hose
This textile-reinforced low-pressure steam hose is a highly flexible and lightweight hose designed for medium-temperature steam delivery applications. Its optimized structure ensures stable performance while maintaining excellent handling and durability.
Structure
- Inner Tube: Black EPDM synthetic rubber
- Reinforcement: High-strength glass fiber textile layer
- Cover: Smooth black EPDM rubber with weather-resistant and abrasion-resistant properties
- Temperature Range: Up to + 338 °F (+ 170 °C)

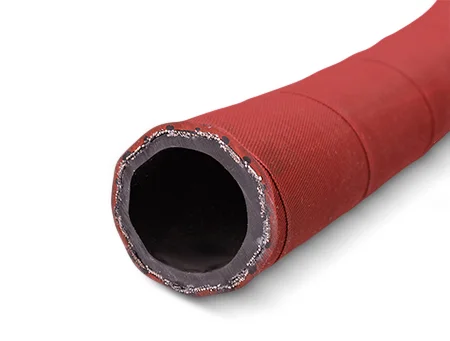

Red High-Pressure Steam Hose
This high-pressure steam hose is specially designed for demanding applications requiring strong thermal resistance and high working pressures. The hose structure includes a smooth EPDM inner tube and multiple layers of steel wire reinforcement for maximum pressure stability.
Structure
- Inner Tube: Premium smooth black synthetic rubber (EPDM-based) offering
- Reinforcement: 1–2 layers of high-strength steel wire braid, providing excellent pressure-bearing capability and mechanical strength
- Cover: EPDM rubber with superior abrasion resistance, corrosion resistance, anti-aging, weather resistance, and ozone resistance

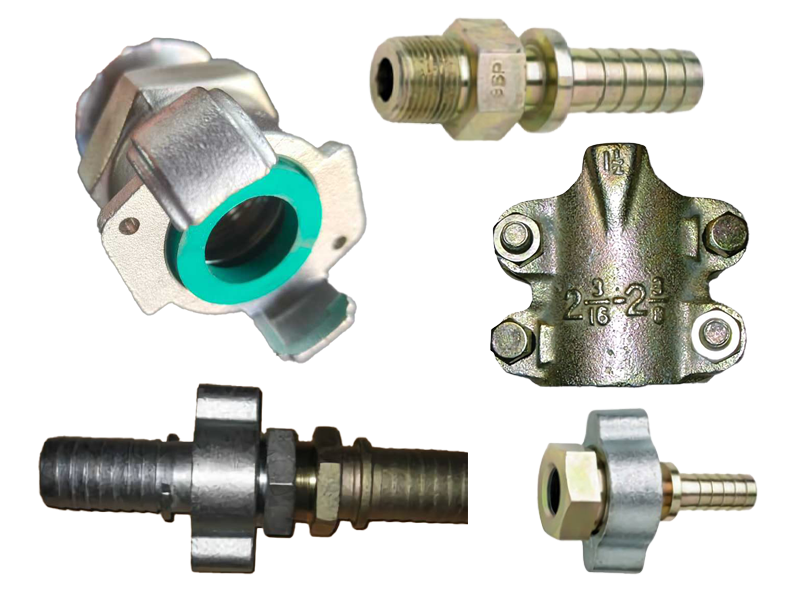

Accessory
The accessory range for steam hoses covers male and female couplings, heavy-duty four-bolt clamp units, and steam-rated crowfoot couplings, all engineered for reliable, leak-free performance in high-pressure steam systems.
- High flexibility with strong vibration resistance.
- Maintains anti-burst and anti-collapse performance even under extreme differential pressure.
- Resists cracking or damage even when accidentally exposed to open flames.
- Robust and reliable overall structure, suitable for harsh industrial environments.
Table 1: Steam Hose Specifications
| W/B |
Hose I.D |
Hose O.D. |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Length |
| DN |
inch |
mm |
MPa |
Psi |
MPa |
Psi |
mm |
m |
| 1W |
10 |
3/8 |
21.5 |
1 |
150 |
4 |
570 |
130 |
20 / 50 |
| 13 |
1/2 |
24.5 |
1 |
150 |
4 |
570 |
180 |
20 / 50 |
| 16 |
5/8 |
27.5 |
1 |
150 |
4 |
570 |
205 |
20 / 50 |
| 19 |
3/4 |
30.5 |
1 |
150 |
4 |
570 |
240 |
20 / 50 |
| 22 |
7/8 |
33.5 |
1 |
150 |
4 |
570 |
280 |
20 / 50 |
| 25 |
1 |
37 |
1 |
150 |
4 |
570 |
300 |
20 / 50 |
| 32 |
1-1/4 |
44 |
1 |
150 |
4 |
570 |
420 |
20 / 40 |
| 38 |
1-1/2 |
50.5 |
1 |
150 |
4 |
570 |
500 |
20 / 40 |
| 45 |
1-3/4 |
57.5 |
1 |
150 |
4 |
570 |
500 |
20 / 40 |
| 51 |
2 |
63.5 |
1 |
150 |
4 |
570 |
630 |
20 / 40 |
| 64 |
2-1/2 |
77.5 |
1 |
150 |
4 |
570 |
700 |
20 / 40 |
| 2W |
10 |
3/8 |
23 |
2 |
300 |
6 |
860 |
130 |
20/ 50 |
| 13 |
1/2 |
26 |
2 |
300 |
6 |
860 |
180 |
20 / 50 |
| 16 |
5/8 |
29 |
2 |
300 |
6 |
860 |
205 |
20 / 50 |
| 19 |
3/4 |
32 |
2 |
300 |
6 |
860 |
240 |
20 / 50 |
| 22 |
7/8 |
35 |
2 |
300 |
6 |
860 |
280 |
20/ 50 |
| 25 |
1 |
38.5 |
2 |
300 |
6 |
860 |
300 |
20 / 50 |
| 32 |
1-1/4 |
45.5 |
2 |
300 |
6 |
860 |
420 |
20 / 40 |
| 38 |
1-1/2 |
52 |
2 |
300 |
6 |
860 |
500 |
20 / 40 |
| 45 |
1-3/4 |
59 |
2 |
300 |
6 |
860 |
500 |
20 / 40 |
| 51 |
2 |
65 |
2 |
300 |
6 |
860 |
630 |
20 / 40 |
| 64 |
2-1/2 |
79 |
2 |
300 |
6 |
860 |
700 |
20 / 40 |
