Home/ Products/Water Suction and Discharge Hose

SBR Rubber Water Suction and Discharge Hose for Harsh Working Conditions

Water suction and discharge hose is widely used for the suction and delivery of water and other neutral liquids at normal temperatures in various fields such as mining, agriculture, construction, irrigation, and general industrial and domestic water transfer. By modifying the rubber compound of the inner tube, the hose can also be customized to provide oil resistance and abrasion resistance, allowing it to convey oil-water mixtures, light slurries, and other industrial materials.

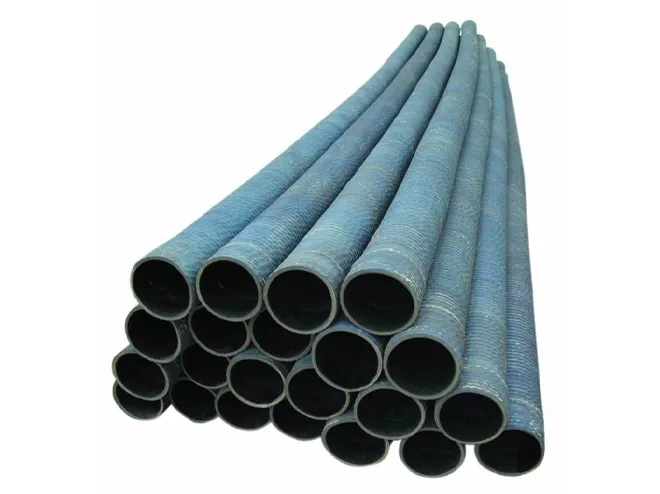

Black water suction and discharge hoses stacked on a white background

Structure

Table 1: Water Suction and Discharge Hose Technical Specifications
Inner Diameter O.D. Max W.P Min B.P Min B.R Vacuum Weight
inch mm mm bar psi bar psi inch mm bar kg/m
3/4 19 27 20 290 60 870 2 51 -0.9 0.5
1 25 34 20 291 60 870 2 51 -0.9 0.6
1-1/4 32 41 20 292 60 870 4 102 -0.9 0.8
1-1/2 38 47 20 293 60 870 4 102 -0.9 1.0
2 51 63 20 294 60 870 7 204 -0.9 1.6
2-1/2 64 73 20 295 60 870 10 255 -0.9 2.3
3 76 87 20 296 60 870 14 356 -0.9 2.8
3-1/2 90 100 20 297 60 870 14 356 -0.9 3.1
4 101 113 20 225 45 675 18 457 -0.9 3.5
5 127 141 15 225 45 675 20 510 -0.9 5.1
6 152 169 15 225 45 675 24 760 -0.9 7.3
8 203 222 15 225 45 675 48 1200 -0.9 13.5
10 253 264 15 225 45 675 60 1500 -0.9 23.4
12 305 332 15 225 45 675 72 1800 -0.9 28.4
16 405 436 15 225 45 675 80 2000 -0.9 30.5
18 457 487 15 225 45 675 90 2300 -0.9 34.0
