Rubber Resin Hose SAE 100 R7/EN856 R7 And SAE100 R8 /EN 855 R8

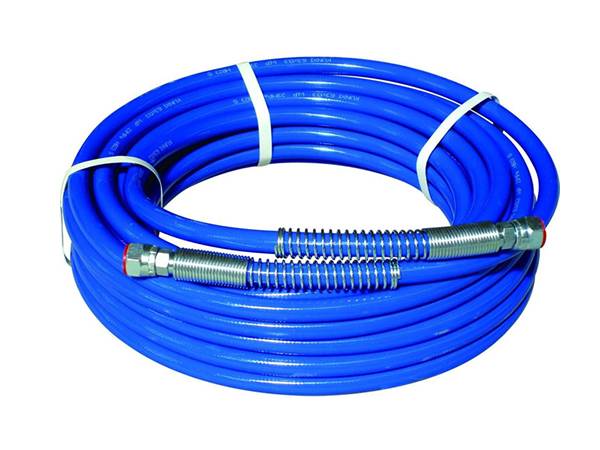

High Pressure Fibre Braided Rubber Resin Hose: SAE 100 R7/EN856 R7 STANDARD

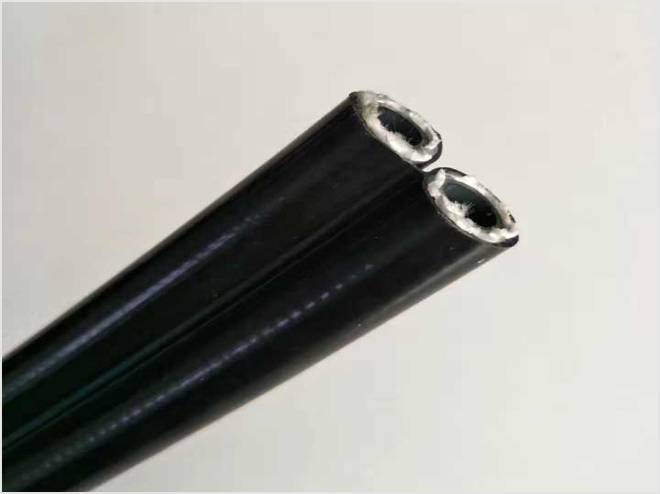

Structure and Capability: This kind of hose is made of inner tube (Nylon), reinforcement (High Flexibility Nylon or Thermoplastic) and outer layer. It is ethereal, flexible, and the inner tube is very smooth. With a few loss of pressure, the hose resistance of the medium flowing is small, and it also owns a fine performance of anti-chemical and impulse.
Application: Automobile, Engineering Machinery, Lathe, Agriculture Machine, Mining, Spurting the Oil Paint, Navigation&Spaceflight, Cooling and other Hydraulic Control System.
SAE100 R8 /EN 855 R8
| DN |
Hose I.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
| inch |
mm |
mm |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
metres |
| 5 |
3/16 |
4.8 |
13.1 |
34.5 |
5000 |
137.9 |
20000 |
38 |
0.115 |
20~100 |
| 6 |
1/4 |
6.4 |
15.9 |
34.5 |
5000 |
137.9 |
20000 |
51 |
0.176 |
20~100 |
| 10 |
3/8 |
9.5 |
19.4 |
27.6 |
4000 |
110.3 |
16000 |
64 |
0.220 |
20~100 |
| 13 |
1/2 |
12.7 |
22.7 |
24.1 |
3000 |
96.5 |
14000 |
102 |
0.283 |
20~100 |
SAE100 R7 /EN 855 R7
| DN |
Hose I.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
| inch |
mm |
mm |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
metres |
| 3 |
1/8 |
3.3 |
8.5 |
17.2 |
2500 |
68.9 |
10000 |
13 |
0.037 |
20~100 |
| 5 |
3/16 |
4.8 |
10.8 |
20.7 |
3000 |
82.7 |
12000 |
20 |
0.068 |
20~100 |
| 6 |
1/4 |
6.4 |
13.0 |
20.7 |
3000 |
82.7 |
12000 |
33 |
0.085 |
20~100 |
| 8 |
5/16 |
7.9 |
15.1 |
17.2 |
2500 |
68.9 |
10000 |
46 |
0.103 |
20~100 |
| 10 |
3/8 |
9.5 |
17.0 |
15.5 |
2250 |
62.1 |
9000 |
51 |
0.141 |
20~100 |
| 13 |
1/2 |
12.7 |
20.7 |
13.8 |
2000 |
55.2 |
8000 |
76 |
0.210 |
20~100 |
| 19 |
3/4 |
19.0 |
27.1 |
8.6 |
1250 |
34.5 |
5000 |
127 |
0.287 |
20~100 |
| 25 |
1 |
25.4 |
34 |
6.9 |
1000 |
27.6 |
4000 |
203 |
0.542 |
20~100 |
